One Year Since Russia’s Invasion of Ukraine: A New Order in Global Energy Markets and Politics

In 18 charts… With gas and LNG deep dive

Energy Markets Since Russia’s Invasion in 14 Charts

One year ago, Russia amassed its troops near the border with Ukraine before launching a massive invasion that upended the global energy markets. Today, we start off the EOA’s newsletter by sharing with readers our first 14 charts that summarize some of the major developments the energy markets have experienced due to the Russia-Ukraine war.

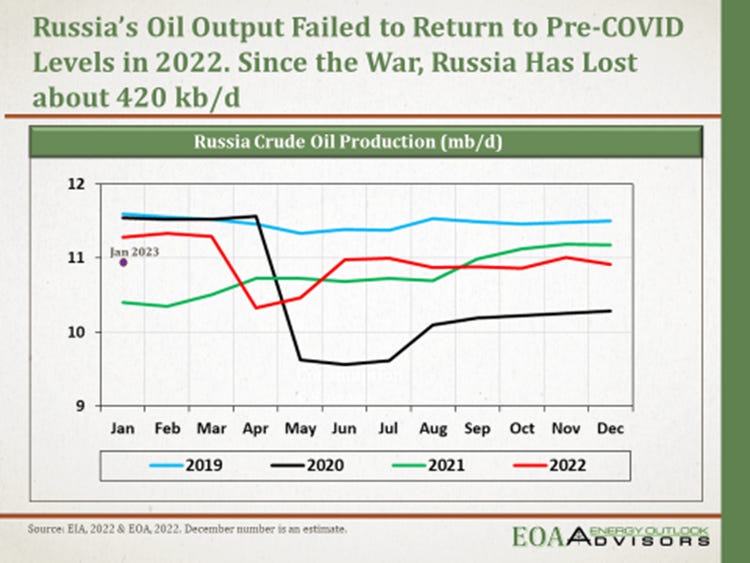

Figure (1)

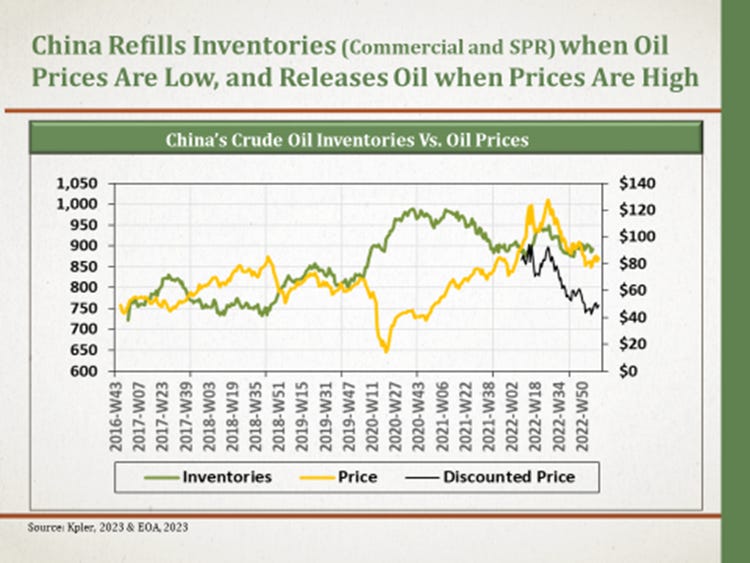

Figure (2)

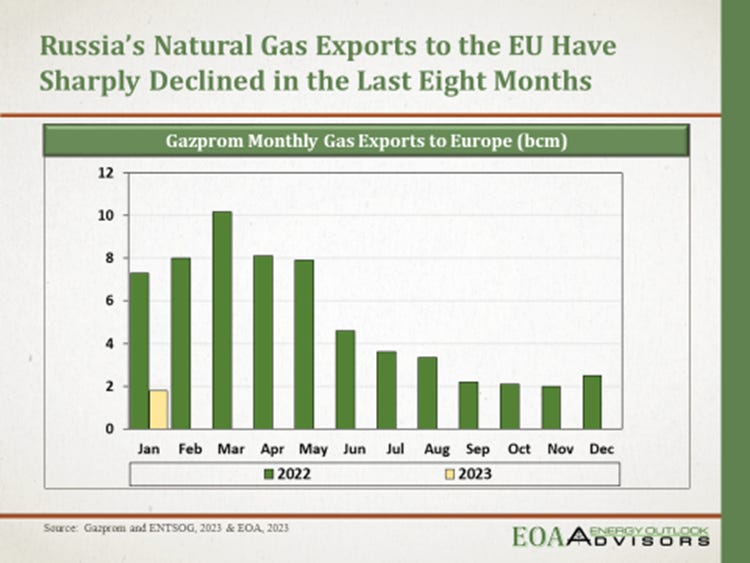

Figure (3)

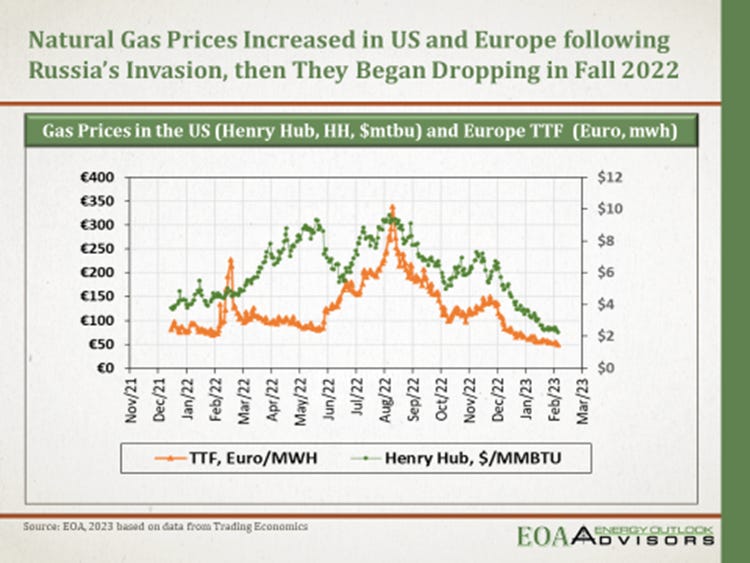

Figure (4)

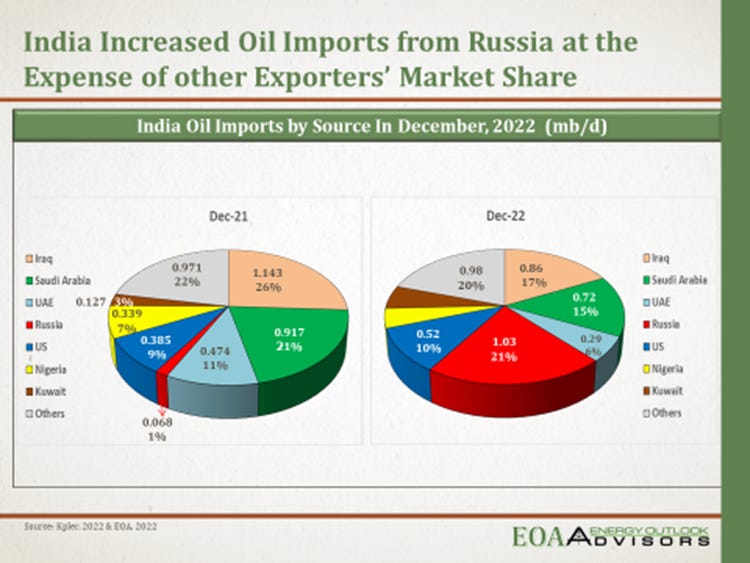

Figure (5)

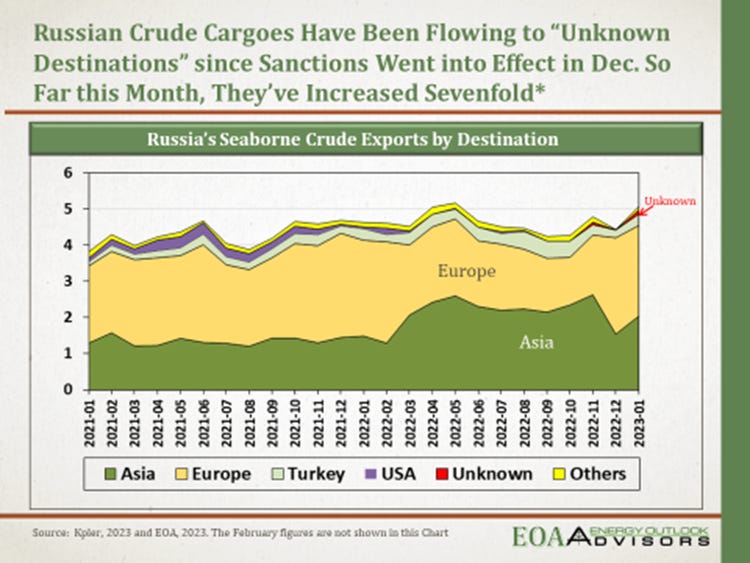

Figure (6)

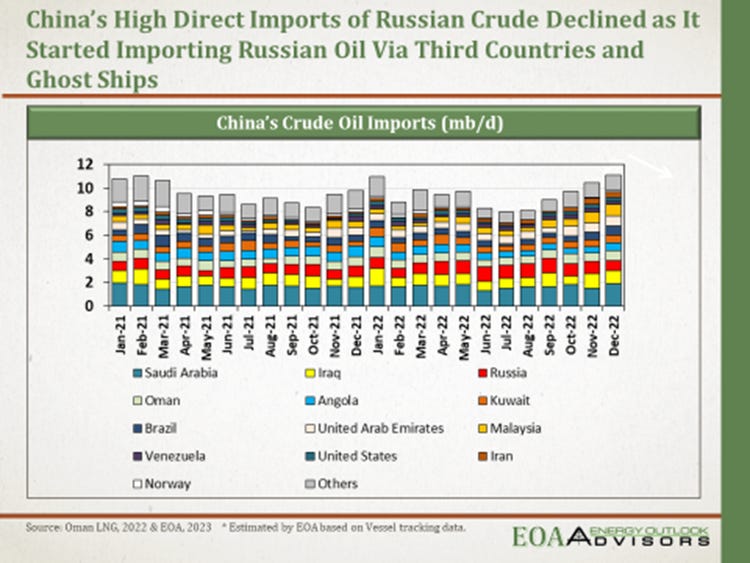

Figure (7)

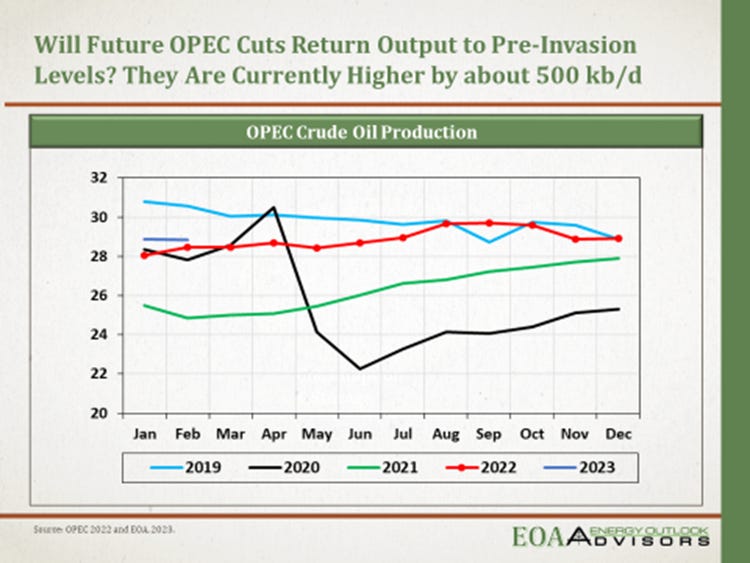

Figure (8)

Figure (9)

Figure (10)

Figure (11)

Figure (12)

Figure (13)

Figure (14)

A New Order in Global Energy Markets and Politics
